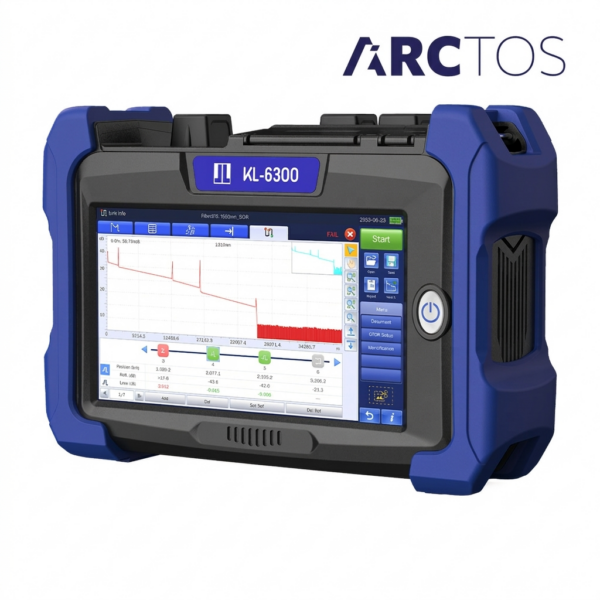

Jilong KL-6300 Fiber Master OTDR
Fiber Master OTDR.
7-inch color LCD touch screen.
Wide dynamic range 30-45dB.
iOLA, one-click Intelligent testing of passive PON networks.
0.8 m event dead zone.
VNC/GPS/WIFI.
Generate PDF reports quickly.
F/P analytical judgment function.
Smart map to analyze links graphically.
7.0 inch multi-touch capacitive touch screen
It supports new gestures to amplification. The screen capture color is clear. The interface design is simple and clear.
Pass & Fail analysis function
Automatically perform Pass/Fail judgments for each event based on pre-specified thresholds. The measurement results can be viewed through the result display items
Smart map analyze links graphically
With Smart Map, users only need to press one button to execute measurement, detect network events and execute Pass & Fail judgment.
Multi-trace analysis
View multi -trace, can view up to 4 traces at the same time, comprehensive analysis, and the results are more accurate.
Bidirectional testing
Averaging values obtained from opposite directions provides a more accurate quantification of losses. Bidirectional testing is a great way to improve test integrity in long-distance applications.
Battery
Battery working time: 12 hours(10500mAh).
Not just OTDR
● OPM module： Used to measure absolute optical power orthe relative loss of optical power through a section of fiber link
● SLS module：Output stable continuous signal, used in combination with an OPM to measure optical loss in fiber optic systems
● VFL module：Luminous stability, strong light source, strong penetration; Two light source modes – steady on, flashing
● Network test module：Network sequencing + Network ranging + Network hunting (optional)
● Fiber connector inspection module： The fiber connector end-face inspection module can visualize the surface of the connector
● SLS module：Output stable continuous signal, used in combination with an OPM to measure optical loss in fiber optic systems
● VFL module：Luminous stability, strong light source, strong penetration; Two light source modes – steady on, flashing
● Network test module：Network sequencing + Network ranging + Network hunting (optional)
● Fiber connector inspection module： The fiber connector end-face inspection module can visualize the surface of the connector
Quickly generate the PDF report
Built -in post -processing software to generate reports of PDF format.
| Model | KL-6300-S1 | KL-6300-S2 | KL-6300-S3 | KL-6300-S4 | KL-6300-S5 | KL-6300-P1 | KL-6300-P2 | KL-6300-M | KL-6300-MS | ||
| Wavelength(nm) | 1310/1550 | 1310/1550 | 1310/1550 | 1310/1550 | 1310/1550 | PON 1310/1550/1625 (built-in filter) | 850/1300 | 850/1300+1310/1550 | |||
| Dynamic range (dB) | 32/30 | 35/33 | 40/38 | 42/40 | 45/43 | 32/30/28 | 38/36/34 | 20/22 | 20/22 32/30 | ||
| Number of optical port | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 1 | 2 | ||
| Event dead zone(m) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 | 1 | 1.5 | SM≤1；MM≤1.5 | ||
| Attenuation dead zone(m) | 3 | 3 | 2.5 | 2.5 | 2.5 | 3 | 3 | 5 | SM≤3.5；MM≤5 | ||
| Multi-fiber Measurement | √ | √ | √ | ||||||||
| Multi-pulse Measurement | √ | x | √ | ||||||||
| Splitters Measurement | Max:32 | Max:64 | Max:128 | Max:32 | Max:64 | x | Max:32 | ||||
| Applicable fiber | SM (ITU-T G.652) | ||||||||||
| Distance range (km) | 0.1, 0.3, 0.5, 1.3, 2.5 , 5, 10 , 20 , 40 , 80 , 120 ,160 , 260, 320 | ||||||||||
| Pulse width (ns) | 3, 5 , 10 , 30 , 50 , 100 , 200 , 300 , 500, 1000 , 2500 , 5000, 10000 , 20000 | ||||||||||
| Number of sampling points | Max250000 | ||||||||||
| Sampling resolution | Min 0.04m | ||||||||||
| Distance measurement accuracy | ±(0.75 m + Measurement distance × 2 × 10−5 + Sampling resolution) | ||||||||||
| Loss measurement accuracy | ±0.03 dB/dB | ||||||||||
| Return loss measurement accuracy | ±2 dB | ||||||||||
| Optical Power Meter Module (Built-in) | √ | ||||||||||
| OPM | Wavelength | 800 ~ 1650nm | |||||||||
| Measure range | -70 ~ +6dBm | ||||||||||
| Measure accuracy | ＜（±0.2dB or ±5%） | ||||||||||
| Display resolution | 0.01dB | ||||||||||
| Optical input port | 2.5mm Universal ferrule for SC,FC,ST | ||||||||||
| Stabilized Light Source Module(Built-in) | √ | ||||||||||
| SLS | Wavelength(nm) | 1310/1550 | 1310/1550/1625 | 850/1300 | 850/1300+1310/1550 | ||||||
| Output power | ≥-10dBm | ||||||||||
| Modulation mode | CW, 270 Hz, 1 kHz, 2 kHz | ||||||||||
| Laser class | Class 1M or Class 1 | ||||||||||
| Optical input port | OTDR port | ||||||||||
| Visual Fault Locator Module(Built-in) | √ | ||||||||||
| VFL | Wavelength(nm) | 650±10nm | |||||||||
| Output power | 10mW | ||||||||||
| Modulation mode | CW, CHOP (2 Hz) | ||||||||||
| Laser class | Class 3R | ||||||||||
| Optical input port | 2.5 mm Universal ferrule type for FC,SC,ST | ||||||||||
| Fiber Inspection Probe(Built-in) | Optional | ||||||||||
| FIP | Pass / Fail | √ | |||||||||
| Magnification | 400X | ||||||||||
| Resolution(um) | ≥1.0 | ||||||||||
| Electrical interface | USB2.0 | ||||||||||
| Optical Connector | FC/UPC,SC/UPC,ST/UPC | ||||||||||
| CMOS size | 1/3 inch | ||||||||||
| RJ45 Networks Test(Built-in) | √ | ||||||||||
| RJ45 | Applicable cable | CAT5, CAT6 | |||||||||
| Distance of Cable Collationl | 300m | ||||||||||
| Distance of emitting signal | 300m | ||||||||||
| GPS(Built-in) | Optional | ||||||||||
| GPS | Location accuracy | < 50m | |||||||||
| Real-time Monitoring | support | ||||||||||
| WIFI Module(Built-in) | √ | ||||||||||
| WIFI | Data transmission | √ | |||||||||
| Remote Control | √ | ||||||||||
| General Specifications | |||||||||||
| Link Map | √ | ||||||||||
| Pass/Fail judgment | √ | ||||||||||
| Distance unit | m, km, mile, kf | ||||||||||
| PC Analysis Software | √ | ||||||||||
| Languages | English, Español, Chinese, Português, Français, Русский，ภาษาไทย，한국어 | ||||||||||
| Optical connector | FC/UPC (SC/UPC,LC/UPC Optional) | ||||||||||
| Display | 77-inch touch screen(Resolution: 1024 × 600) | ||||||||||
| Port | Charge por x 2, 12V – 2.5A & Type C | ||||||||||
| Operating temperature | -10 – 50˚C (0 – 40°C when AC adapter is being used, 0 to 35˚C when battery is be charged) | ||||||||||
| Storage temperature | -20 to 60˚C | ||||||||||
| Altitude | 4000 m | ||||||||||
| Humidity | 0 to 90% RH (20% -90% 739874 AC ) | ||||||||||
| Power requirements | 100 – 240V AC, 50/60Hz (AC adapter, non-condensing) | ||||||||||
| Battery | 7.4V,10500mAh,≥77Wh | ||||||||||
| LED Light illumination | >15000mcd | ||||||||||
| Operating time | 12Hours | ||||||||||
| Data storage | Internal storage: ≥10000 traces External storage : USB memory | ||||||||||
| Dimensions | 232 mm (W) × 161 mm (H) × 70 mm (D) | ||||||||||
| Weight | 1.6 kg (including internal battery and protectors, excluding OTDR unit and options) | ||||||||||
