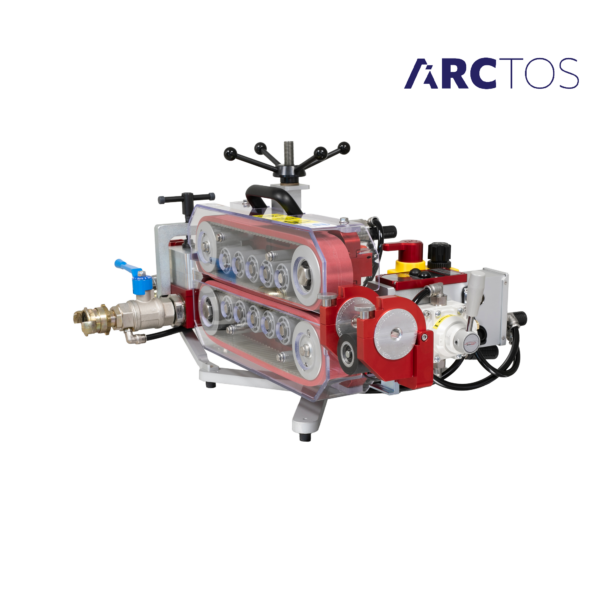

Jetting V3 NE Fiber Blowing Machine

Technical data

Max pressure: 16 Bar

Pushing force: Up to 1800 N

Max Speed: 50 m/min

Cable diameter: 4-40 mm

Duct diameter: 10-63  mm

Weight: 25 kg

Air connection: 1“ Claw connector

WxHxD: 700x400x590 mm

Datasheet-V3-2024-06

Ζητήστε Προσφορά
Κωδικός προϊόντος: JTG-V3FBM Κατηγορίες: , ,

Περιγραφή

Jetting V3 NE Fiber Blowing Machine

Robust and powerful, pneumatic operated fiber blowing machine designed for single cables and for relining of multiple micro ducts. Configuration can be made for cable between 4 and 40 mm and duct dimensions between 10 and 63 mm. The unique Joystick controller and the agile motors securing a optimal control of the installation. With an anodized aluminum construction, the machine is lightweight but still very strong.

FIBER BLOWING MACHINE FOR CABLE
4-40 MM / DUCT 10-63 MM

  • Pneumatic operation, double motors.
  • Electronic counter for speed and distance.
  • Gentle operation with long contact surface on the cable.
  • Display for speed, distance and pressure in duct.
  • Max. speed 50 m/min (165 ft./min), max pushing force on cable 1800 N.
  • Adjustable clamping force.
  • Option of sub-ducting kit for installing several micro ducts. Example: 7×7/3.5 mm or
    4×14/10 mm in a 50 mm tube simultaneously.
  • Works with JetLogger
  • Joystick Controller with forward and reverse function.
  • Duct air quick release valve.

STD CONFIGURATION

  • Transport case
  • Extra fixtur
  • 1 bottle Micro Duct Lube
  • 1 bottle Duct Lube
  • 1 bottle pneumatic oil
  • Service kit
  • 12 mm cabels guides

Επιπλέον πληροφορίες

Κατασκευαστής

Jetting
