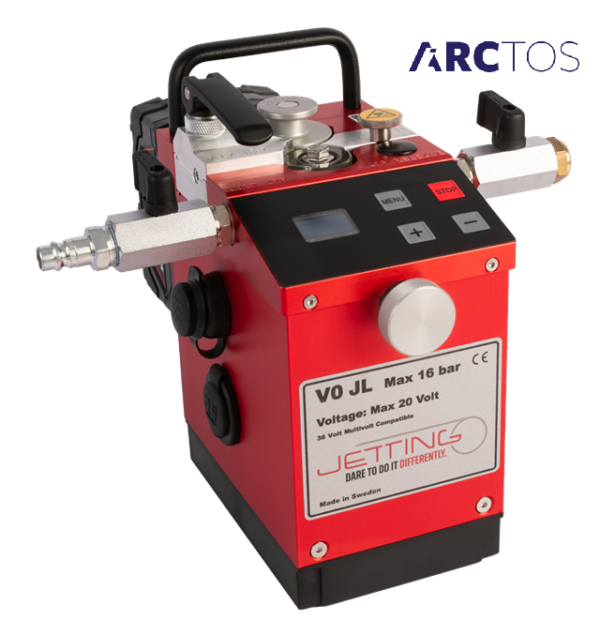

Jetting V0 Fiber blowing machine
Extremely compact electrically operated fiber blowing machine optimized for FTTX installation of blown fiber (EPFU) and micro/nano cables, from 0,8 to 6 mm into duct from 3 to 16 mm. A full digital control system with soft- start, electronic fiber security, memory functions, combined with high speed possibility makes the machine very easy and effective to use. Can be operated directly from its case.
POWERFUL FTTX MACHINE FOR CABLE 0,8 – 6 MM / DUCT 3-16 MM
- Electrically operated. Battery connected. Optional power supply.
- Allows installation in a larger duct with a smaller compressor.
- Electronic stopping/slipping protection within 250 ms.
- Gentle operation, reduced cable pull with the aid of continuously variable pushing force.
- Forward and reverse function
- Display for current speed, distance, pushing force pressure and duct air temp.
- Max. speed: 250 m/min.
- Stepless pushing force on cable up to: 60 N.
- Adjustable clamping force.
- Works with JetLogger.
- 110/240 V Power supply. No need to charge or change batteries
- Table bracket. For safe installation on working table.
- Jetlogger. Electronic documentation system.
- Metal drive wheel for < 2.5 mm cabel.
- Softstart: Enables an even smoother start protecting the fiber.
- Memory: The last inserted data like pushing force will stay in the memory even if the device will be switched off or the battery need to be exchanged.
- Service info: Memory of total milage/distance since machine taken into operation.
- Duct air temp: Display showing the air temperature injected into the duct.
- STD CONFIGURATION
- Transport Case
- 3 drive wheels
- 1 pcs with rubber 0,8-3 mm
- 1 pcs for 3,0-4,5 mm
- 1 pcs for 4,5-6,5mm
- Battery charger 230 V
- 2 Batteries
- 1 Bottle Micro Duct Lube
- Service kit
- Ground cable
