Description
100 m SC/APC Fiber Optic Patch Cord for FTTH and FTTx Networks
The 50 m SC/APC Fiber Optic Patch Cord It provides a reliable connection for professional fiber optic installations. Specifically, it features two SC/APC connectors, G652D 9/125 μm single-mode fiber, and simplex construction. In addition, the 1.8 mm LSZH outer jacket enhances safety in indoor environments.
The 50 m length is suitable for installations requiring a greater distance between active equipment, an ODF, a distribution frame, or a termination point. This allows technicians to avoid additional connections and organise the cable route more efficiently. At the same time, the bright yellow colour makes it easier to identify the single-mode fiber within the installation.
SC/APC–SC/APC Connection with Low Reflectance
The patch cord features connectors SC/APC connectors at both ends. The angled APC polish reduces unwanted optical signal reflections. Therefore, the cable is a suitable choice for applications requiring stable performance and high return loss.
In addition, the green connectors help technicians immediately identify the APC type. However, the patch cord should only be connected to matching SC/APC ports. Connecting APC to UPC may cause increased signal loss and damage to the connector end faces.
G652D 9/125 μm Single-Mode Fiber
The single-mode fiber G652D 9/125 μm supports long-distance telecommunications applications. At the same time, it provides low attenuation at the standard wavelengths used in fiber optic networks. Therefore, the patch cord is suitable for FTTH, FTTx, PON, and enterprise network installations.
In addition, the G652D specification supports a wide range of modern transmission applications. Therefore, technicians can use the cable in distribution frames, patch panels, fiber optic enclosures, ODFs, and active equipment connections.
LSZH Jacket for Enhanced Safety
The outer jacket LSZH produces limited smoke and low levels of halogen gases in the event of a fire. For this reason, the cable is suitable for indoor installations in commercial buildings, telecommunications facilities, and data rooms.
At the same time, the outer diameter of 1,8 mm keeps the patch cord slim and flexible. This allows the installer to route it more easily through cable ducts, racks, and distribution frames. In addition, the simplex construction provides a single independent optical path between the two points.
Μήκος 50 Μέτρων για Απαιτητικές Εγκαταστάσεις
The length of 50 m καλύπτει μεγαλύτερες αποστάσεις χωρίς ενδιάμεσες συνδέσεις. Επομένως, το patchcord μειώνει τα πιθανά σημεία απώλειας και απλοποιεί την εγκατάσταση. Παράλληλα, ο τεχνικός μπορεί να δημιουργήσει μία συνεχόμενη σύνδεση από τον κατανεμητή μέχρι τον τερματικό εξοπλισμό.
However, before installation, the user should calculate the total cable route and the required service loop. In addition, sharp bends, excessive tension, and pressure on the cable must be avoided.
Εφαρμογές του Patchcord SC/APC–SC/APC 50m
The 50 m SC/APC Fiber Optic Patch Cord supports a wide range of professional applications. Primarily, it is suitable for FTTH and FTTx installations. In addition, it connects optical distribution frames, patch panels, and telecommunications equipment.
- FTTH and FTTx installations.
- GPON and PON networks.
- ODF and optical distribution frame connections.
- Connection of ONT, ONU, and compatible equipment.
- Patch panels and telecommunications racks.
- Professional and enterprise networks.
- Laboratory and test installations.
- Connection of test instruments with SC/APC ports.

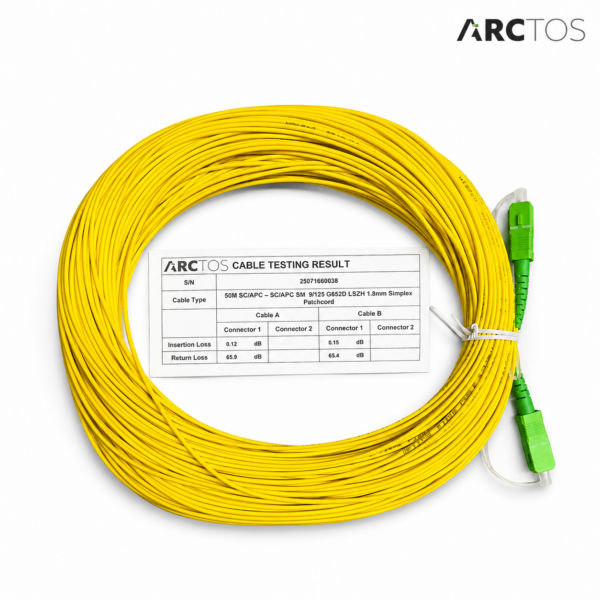

Inspection of the Photographed Patch Cord
The photographed unit is accompanied by a cable test report. Specifically, the report shows insertion loss values 0,12 dB and 0,15 dB. In addition, it shows return loss values 65,9 dB and 65,4 dB.
Therefore, the test results for this specific sample confirm low insertion loss and excellent reflectance performance. However, these values apply only to the photographed unit and its corresponding test report.
Key Benefits
- SC/APC–SC/APC connection.
- Cable length: 50 m.
- G652D 9/125 μm single-mode fiber.
- Simplex single-fiber construction.
- LSZH outer jacket.
- Outer diameter: 1.8 mm.
- Low insertion loss.
- Reduced reflections thanks to the APC connectors.
- Highly visible yellow single-mode fiber jacket.
- Suitable for FTTH, FTTx, PON, and ODF applications.
Technical Specifications
| Product Type | Fiber optic patch cord |
| Connector A | SC/APC |
| Connector B | SC/APC |
| Fiber Type | Single Mode |
| Fiber Specification | G652D |
| Core / Cladding Diameter | 9/125 μm |
| Construction | Simplex |
| Jacket Material | LSZH |
| Outer Diameter | 1,8 mm |
| Length | 50 m |
| Cable Color | Yellow |
| Connector Color | green |
| Typical Applications | FTTH, FTTx, GPON, PON, ODF and patch panels |
Instructions for Proper Use
First, the technician should clean the connectors before each connection. In addition, the protective caps should be fitted whenever the patch cord is not in use. This helps prevent dust contamination and keeps the ferrule end faces clean.
At the same time, the installer should maintain the appropriate bend radius. Therefore, the cable should not be bent sharply or compressed with cable ties. Finally, the patch cord should never be pulled by the connector when disconnecting it.
Why Choose This Fiber Optic Patch Cord
This patch cord combines a 50 m length, SC/APC connectors, and G652D single-mode fiber. In addition, the LSZH jacket makes it well suited for indoor professional installations. Therefore, technicians gain a practical and reliable solution for everyday fiber optic work.
Overall, the 50 m SC/APC Fiber Optic Patch Cord is a suitable choice for installers, FTTH crews, telecommunications companies, and network technicians. Therefore, it supports applications requiring stable transmission, low reflectance, and long connection distances.
See more professional Fiber optic products and tools on the ARCTOS e-shop. In addition, you can read more about the ITU-T G.652 optical fiber specification.
Frequently Asked Questions About the 50 m SC/APC–SC/APC Patch Cord
What is the difference between SC/APC and SC/UPC?
The SC/APC connector has an angled polished end face and is usually green. As a result, it reduces reflections more effectively than an SC/UPC connector. However, APC and UPC connectors should not be connected to each other.
Is it suitable for FTTH installations?
Yes. The patch cord supports FTTH and FTTx installations that use compatible SC/APC ports. In addition, it can connect ODFs, distribution frames, and compatible terminal equipment.
What does G652D 9/125 μm mean?
G652D indicates the category of the single-mode optical fiber. At the same time, 9/125 μm refers approximately to the diameter of the fiber core and cladding.
What does an LSZH jacket mean?
LSZH stands for Low Smoke Zero Halogen. Therefore, the jacket produces limited smoke and low levels of halogen gases in the event of a fire.
Can I use the patch cord outdoors?
This patch cord is primarily intended for protected indoor installations. Therefore, permanent outdoor use requires a cable with suitable protection against moisture, ultraviolet radiation, and mechanical stress.
How should I clean the SC/APC connectors?
First, use a suitable SC connector cleaning tool or specialised fiber optic cleaning products. Next, inspect the connector before making the connection. Finally, replace the protective cap once the work is complete.
