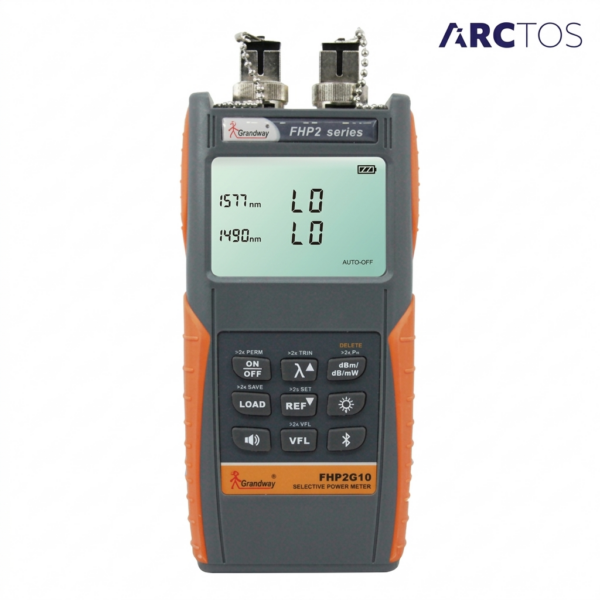

Grandway FHP2G10 Selective Power Meter
Grandway FHP2G10 – Selective Power Meter / PON Tester
The Grandway FHP2G10 is an advanced power meter, specially designed for testing and maintaining PON networks (EPON, GPON, 10G-EPON, XG(S)PON). Unlike a conventional meter, the device can separate the downstream wavelengths. 1490 nm and 1577 nm, providing accurate measurements for each signal separately. This gives the technician a clear view of the network performance and makes it much easier to locate faults.
Additionally, the FHP2G10 features a built-in Visual Fault Locator (VFL) 10 mW, which helps quickly locate breaks and poor connections in the fiber optic cable. The device supports storage of up to 999 measurements, allowing comparison and analysis of results in the field or in the lab. Therefore, it is a reliable tool not only for acceptance testing but also for periodic maintenance.
Thanks to the threshold setting function (thresholds), the user can set acceptable power levels and receive an immediate indication Pass, Warning or Fail. This reduces diagnostic time and increases the efficiency of technical crews. Also, the device supports charging via USB Type-C, while the data can be easily exported to a computer for further processing. In addition, it also operates with rechargeable Ni-MH AA batteries, ensuring flexibility in daily use.
The compact and ergonomic design of the FHP2G10 makes it ideal for field use. It is durable, easy to use, and suitable for technicians working on FTTx networks, telecommunication infrastructures, and data centers. Thanks to its high accuracy and ease of operation, it can be the ideal solution for those who need a reliable PON tester with extended capabilities.
When Should We Choose the Grandway FHP2G10?
The Grandway FHP2G10 is suitable when the technician needs to separately measure the downstream signals at 1490 nm and 1577 nm in GPON and XG(S)-PON networks. Unlike a conventional broadband Optical Power Meter, the FHP2G10 separates the two wavelengths and displays an independent power value for each signal.
Therefore, it is a practical choice for connection activations, PON testing, FTTH network maintenance, and problem diagnosis in networks where GPON and XG(S)-PON coexist. At the same time, the Pass, Warning, and Fail indicators help the technician quickly evaluate the measurement based on the project limits.
For more information about evaluating measurements, read the guide dBm and dB in Fiber Optics. You can also view more fiber optic testing instruments or visit the ARCTOS Solutions in Athens and Galatsi.
Specifications
-
Separate measurement of downstream signals 1490 nm & 1577 nm
-
Support for EPON / GPON / 10G-EPON / XG(S)PON
-
Built-in VFL 10 mW (CW / 2 Hz)
-
Thresholds with indicators Fail / Warning / Pass
-
Measurement range: –40 to +10 dBm.
-
Resolution: 0.01 dB
-
SC universal optical port compatible with FC / ST via adapter
-
Storage of up to 999 measurements
-
Power supply: 2 × Ni-MH AA or USB Type-C
-
Compact design, ideal for field use
Which professionals is the Grandway FHP2G10 suitable for?
The Grandway FHP2G10 is an ideal choice for FTTH technicians, telecommunications contractors, fiber optic installation crews, and companies that perform measurements on GPON and XGS-PON networks. The combination of optical power measurement, built-in VFL, and storage capability for up to 999 measurements makes daily testing and project documentation easier.
Why Choose the Grandway FHP2G10?
The Grandway FHP2G10 allows the technician to quickly test downstream signals in both GPON and XGS-PON networks without changing measurement instruments. This reduces working time and helps complete activations and field tests faster.
In addition, the instrument provides reliable optical power measurements and helps with the immediate detection of possible losses. At the same time, it works ideally with OTDR, Fusion Splicer, fiber optic cleaning tools and FTTH equipment, so the technician can complete network installation, testing, and certification faster.
Frequently Asked Questions About the Grandway FHP2G10 Selective Power Meter
What does the Grandway FHP2G10 Selective Power Meter measure?
The Grandway FHP2G10 separately measures the optical power of downstream signals at 1490 nm and 1577 nm. Therefore, it helps technicians test GPON and XG(S)-PON networks with greater clarity.
Is the FHP2G10 an OTDR?
No. The FHP2G10 is a selective PON power meter and not OTDR. It measures optical power in dBm, while an OTDR analyzes distance, events, and losses along the optical fiber.
Does the Grandway FHP2G10 Selective Power Meter have a VFL?
Yes. The instrument features a 10 mW VFL with CW and 2 Hz modes. This allows the technician to perform quick visual inspection for visible breaks or incorrect connections.
How many measurements does the Grandway FHP2G10 store?
The Grandway FHP2G10 stores up to 999 measurements. In addition, technicians can use the stored values for comparison and test documentation.
Where can I buy the Grandway FHP2G10 in Athens?
You can purchase the Grandway FHP2G10 from ARCTOS Solutions at 6 Dilou Street, Galatsi, Athens. At the same time, ARCTOS provides technical guidance for selection and use of professional fiber optic measuring instruments.
