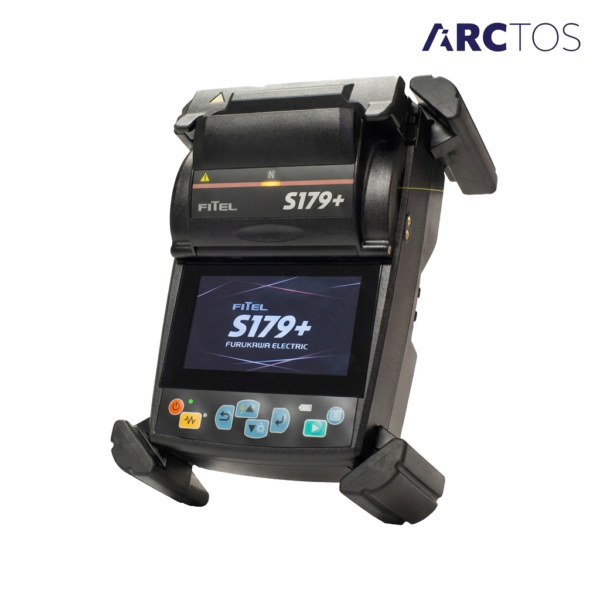

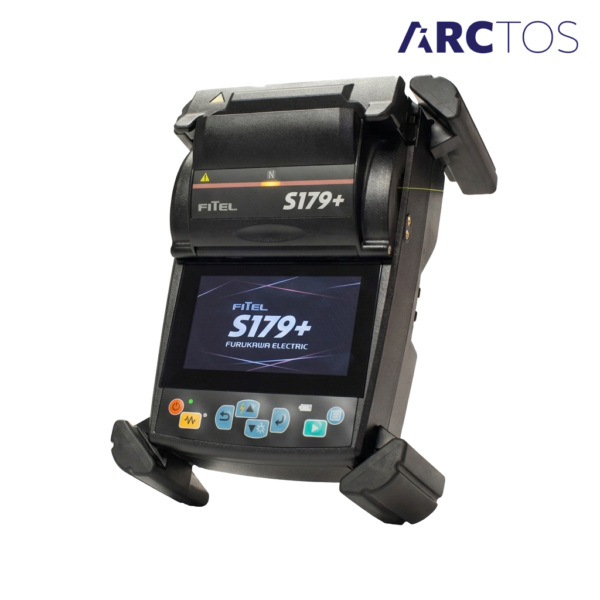

FITEL Core Alignment Fusion Splicer S179+
The FITEL S179+ Core Alignment Fusion Splicer offers powerful performance, delivering fast and reliable optical fiber splicing even under harsh environmental conditions. By combining speed, precision, durability, portability and state-of-the-art communication methods in one unit, this fusion splicing machine opens the door to an entirely new range of applications. The FITEL S179+ Fusion Splicer is highly effective for use in data centers, long-haul operations, Metro, LAN, and FTTx fiber, including ultra bend-insensitive fibers as well as large area effective fibers.
Τεχνικά Χαρακτηριστικά
Product Specifications
Applicable Fibers
SM (ITU-T G.652, G.657A1 and G.657A2), MM (ITU-T G.651), DSF (ITU-T G.653),
Cut-off Shifted Fiber (ITU-T G.654, Large Area type), NZD (ITU-T G.655),
BIF/UBIF (Bend Insensitive Fiber ITU-T G.657B3)
Cladding Diameter 80 – 150 μm
Coating Diameter 100 – 3000 μm
Fiber Cleave Length 5 – 16 mm
Average Splice Loss SM:0.02dB, MM:0.01dB, DSF:0.04dB, NZD:0.04dB
Splice Time 6 seconds (Semi-auto mode)
9 seconds (Regular mode)
Heat Time6
9 (60mm, Tyco SMOUV1120-01, coating diameter 250-900µm, Power mode)
13 (60mm, FITEL S921, coating diameter 250µm, Power mode)
15 (60mm, FITEL S921, coating diameter 900µm, Power mode)
Splice Programs Max. 300
Automatic Splicing Selection Available
Heat Programs Max. 100
Automatic Heating Start Available
Applicable Sleeves 20/40/60 mm
Fiber Holder Tight Holder (loose tube applicable) or Removable Fiber Holder System
Tension Test 1.96 N
Splice Return Loss 70 dB or more
Attenuation Splice Function Intentional high splice loss of 0.1dB to 15dB(0.1dB step) can be made for an inline fixed attenuator
Fiber Image Magnification 104X, 278X, 556X
Splice Result Strage 20,000
Image Capture Capacity Last 100 images to be automatically captured + up to 100 images to be stored permanently
Dimension 139W x 209D x 114H mm (not including shock absorber)
179W x 246D x 131H mm (including shock absorber)
Weight 1.7 kg (without battery), 2.0 kg (with battery)
Monitor 4.3” wide color LCD monitor with touch screen
Propulsion (motor) 8 N (designed value)
Data Output USB ver. 2.0 mini B x 1 port, Standard A x 1 port
Battery Capacity7 A Typical 220 splice/heat cycles, 90sec/cycle
Altitude 5000 m
Wind Protection 15 m/s
Operating Temperature -10 to + 50 °C (without excessive humidity)
Storage Temperature -40 to +60 °C (without excessive humidity)
Humidity 0 to + 95% RH (non-condensing)
Power Source AC Input 100 to 240V (50/60Hz), DC Input 11 to 24 V
