Description

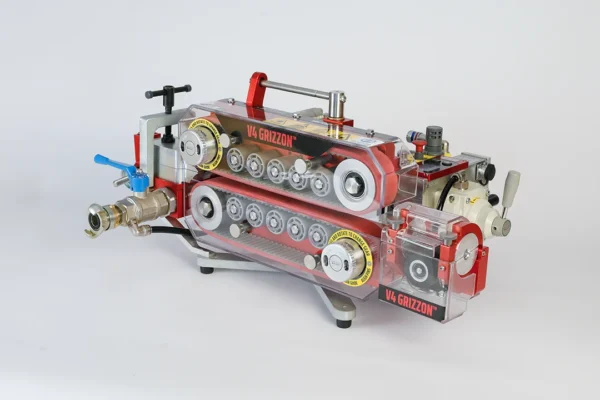

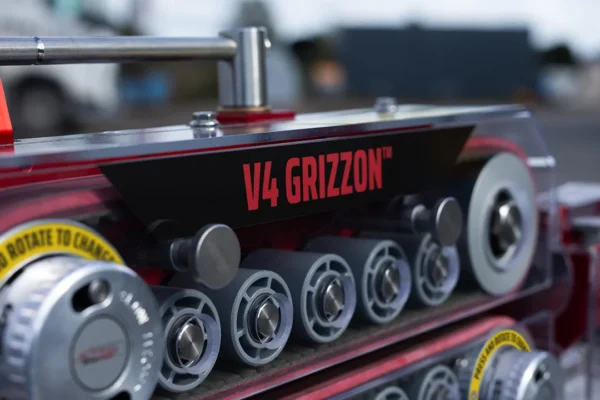

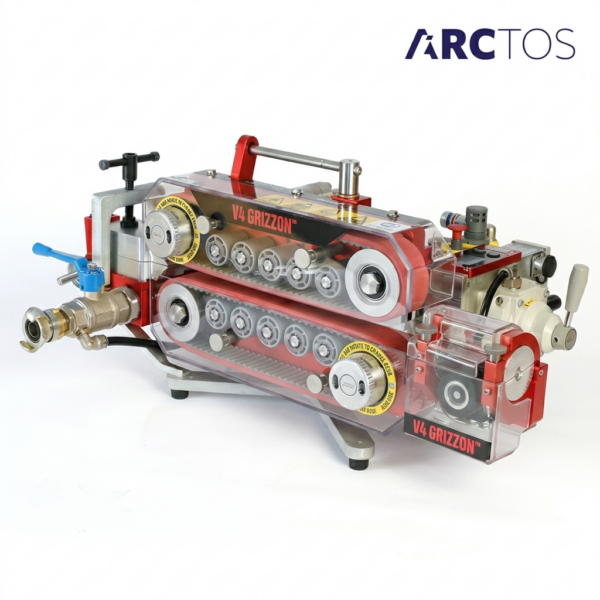

JETTING V4 Grizzon Fiber Blowing Machine
Product Description
The V4 Grizzon™ from Jetting AB is the leading solution for professional fiber optic installers, setting a new standard in technology blowing.
Thanks to the patented system dual-gear system, it offers either high installation speed or exceptionally high pushing force, depending on the needs of the project.
Weighing only 31 kg, it is easy to transport, yet impressive in terms of power:
-
up to 2.000 N pushing force
-
up to 110 m/min blowing speed
It can be configured for both air-blowing applications, as well as for floating installations (water + air), while with the sub-ducting kit, it also supports work with microducts.
The Jetlogger provides complete real-time monitoring and documentation of the installation.
Advantages
-

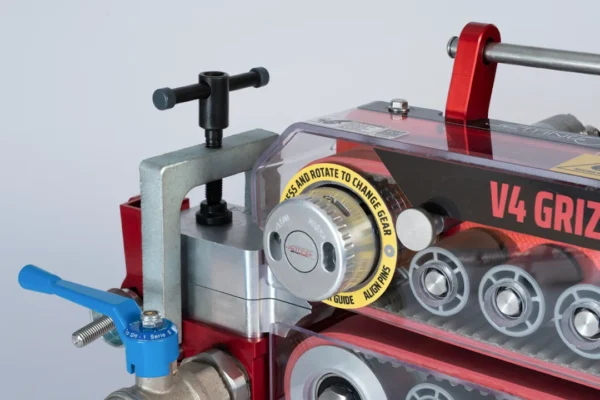

Dual-Gear for instant switching between speed and power
-
Compressed Air Blowing Function
-
Accepts cables from 4–40 mm and ducts from 10–63 mm
-
Digital display (speed, distance, pressure)
-
Precise joystick control
-
Adjustable clamping for maximum cable protection
-
Floating capabilities for long-distance installations
-
Jetlogger compatible for complete recording
-
Push/Pull functions with Jetting Cart
Technical Specifications
-
Operating Pressure: 10–16 bar
-
Maximum blowing speed: 110 m/min
-
Pushing Force: έως 2.000 N
-
Cable Diameter: 4–40 mm
-
Duct Diameter: 10–63 mm
-
Weight: 31 kg
-
Dimensions 710 × 540 × 340 mm
-
Air Connection: 1″ claw connector
Included in the Package
-
Carrying Case
-
Service kit
-
Micro Duct Lube & Duct Lube
-
Pneumatic Oil
-
12 mm Cable Guides
Recommended Accessories
-
Jetting Cart
-
Jetlogger
-
Afterblower
-
Floating kit
-
Sub-ducting kit
-
Duct clamps
-
Cable guides (15, 22, 26, 34 mm)
