Description

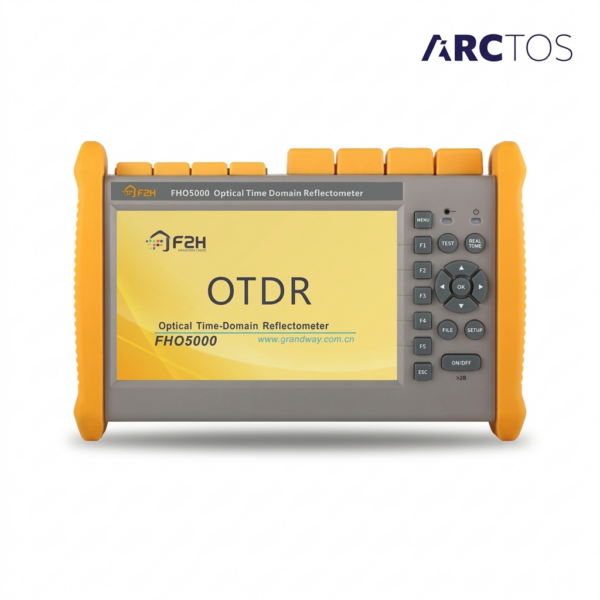

GRANDWAY OTDR FHO5000-T43F
FHO5000 series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. The new generation FHO5000 series has higher test performance and product stability. Larger dynamics and optimized deadzone can provide more accurate fiber testing.
FHO5000 is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes FHO5000 more smart and compact and multi-purpose.
Whether you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, FHO5000 can be your best assistant.
FEATURES
- Integrated design,smart and rugged
- IP65 protection level,outdoor enhanced
- 7-inch anti-reflection LCD screen
- PON online test module(1625nm/1650nm) is optional
- MMF test module(850/1300nm) is optional
- Support remote control via LAN
- Optimized FLM——More intelligent algorithms to characterize the optical fiber line
- Support multi-language display and input
APPLICATIONS
- FTTX test with PON networks
- CATV network testing
- Access network testing
- LAN network testing
- Metro network testing
- Laband Factory testing
- Live fiber troubleshooting
Ready for all kinds of environment.
FHO5000 series OTDR is specially designed for tough outdoor jobs. Humanized menu, Light-weight, easy operation, low-reflection LCD and more than 6 hours working period make it perfect in field testing.
What you need is all-in-one!
FHO5000 series OTDR is a highly integrated platform that features with four optical module slots, with a large 7-inch color touch screen, a high-capacity lithium battery, an optional microscope (through universal USB port), and built-in optical test functions, such as PON test module, Fiber link map(FLM), visual fault locator (VFL), optional power meter and laser source, making it qualified in the installation,activation, and maintenance of FTTx/Access/Metropolitan area network/backbone network.
Main functions
Multi-mode OTDR
Besides standard single mode (1310/1550nm), FHO5000 series OTDR supports multi-mode (850/1300m) test mode for option to analyze multi-mode fiber network.
PON ONLINE TEST
Optimized PON Test Capability
With improved hardware and advanced algorithm, FHO5000 PON series(T40F/T43F/T45F) can easily pass through 1×64 splitter and accurately describe the overall structure of PON network.
