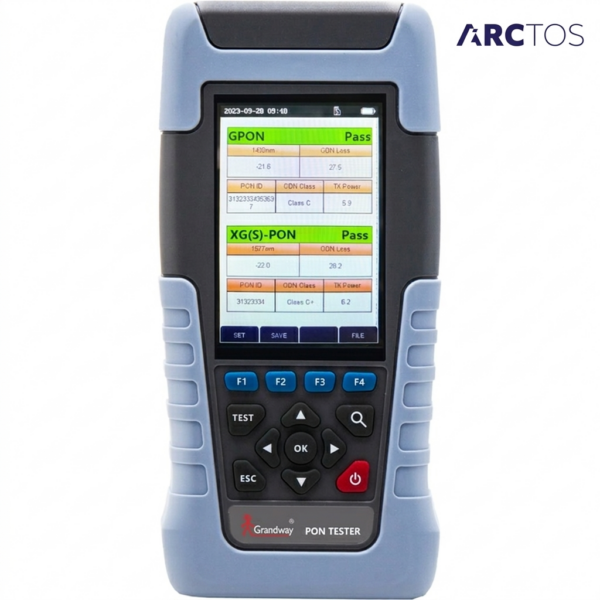

GRANDWAY FOH-200XGS-BASE PON Tester
Initially, the Grandway FOH-200XGS-BASE PON Tester offers accurate and fast measurements in PON fiber optic networks. Technicians use it for installations, activations, maintenance, and testing of GPON and XGS-PON networks. In this way, installers and FTTH/FTTP service providers can effectively test every connection in the field.
In addition, the instrument automatically recognizes the OLT PON-ID, ODN class, transmit power, and loss grade. Therefore, the technician can evaluate the network status more quickly and identify possible issues before project delivery.
🔎 Key Features
- Automatic PON-ID Recognition: The instrument recognizes the OLT PON-ID, ODN class, Tx power, and loss grade according to ITU-T standards.
- Accurate power measurement In addition, it selectively measures the power of downstream signals at 1490 nm and 1577 nm.
- GPON and XGS-PON Support: At the same time, it automatically recognizes the network type and allows the technician to perform quick checks.
- Bluetooth and App: The wireless connection allows results to be transferred, managed, and organized via mobile device.
- 5000 mAh Battery: This allows the technician to use the instrument for a longer period of time in the field.
- 3.5-Inch Touchscreen: Finally, the easy-to-read display provides quick access to functions and measurements.
🛠️ Technical Specifications
- Application network GPON and XG(S)-PON with automatic recognition
- Downstream Power Measurement: 1490 nm and 1577 nm
- Optical interface SC/APC
- Power Supply / Charging : USB-C with 20W fast charging
- Data storage 16 GB TF Card
- Battery Capacity: 5000 mAh
- Display: 3.5-inch color touchscreen
- Weight: 570 g
- Dimensions 193 × 94 × 47 mm
In which applications do technicians use the Grandway FOH-200XGS-BASE?
Initially, technicians and crews use the Grandway FOH-200XGS-BASE in installations, activations, and maintenance work on networks
GPON and XGS-PON. In addition, the instrument quickly checks optical power and automatically recognizes the OLT PON-ID. This allows the technician to immediately evaluate the quality of the connection and identify possible losses or problems in the network. At the same time, the technician combines the PON Tester with
OTDR for more complete network diagnosis. As a result, the technician reduces testing time and delivers more reliable installations. FTTH.
📌 Why Choose the Grandway FOH-200XGS-BASE
First of all, the Grandway FOH-200XGS-BASE PON Tester checks and evaluates modern GPON and XGS-PON networks. In addition, the touchscreen offers easy and fast management of measurements.
At the same time, the Bluetooth connection allows the technician to organize results via mobile device. Data storage also helps document each job. For this reason, the instrument is a practical choice for daily professional use.
Finally, the portable design and 5000 mAh battery make field work easier. This allows the technician to perform more tests without frequent interruptions for charging.
🏆 Suitable For
- Fiber optic installation and maintenance technicians
- Telecommunications project crews
- FTTH/FTTP service providers.
- Activation of GPON and XGS-PON connections
- Optical power and connection quality testing
- Diagnosis of losses and problems in PON networks
- Recording and documenting results in the field
