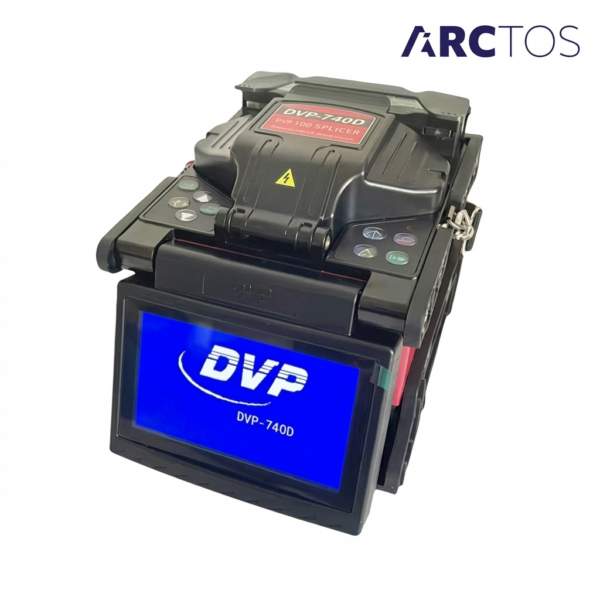

DVP-740D Fusion Splicer Fiber Fusion Splicing Machine FTTH

1.364,00€ incl. VAT

  • Fastest splicing and heating in the industry: 7-second splicing and 13-second heating

  • Newly designed carrying case: easy to transport and can be used as a work surface

  • Powerful battery and high-quality electrode with a lifetime of up to 5,000 splices

  • Up to 250 continuous splicing and heating cycles with one full charge

  • Compact and lightweight design

  • Fully automatic operation

  • Splicing quality guarantee up to 5,000 meters altitude

  • System Test (SYSTEM TEST) for optimal operation

  • Color LCD display

  • Pause function, ideal for scientific research

  • Storage up to 8,000 splicing results

  • USB & DC Ports

  • 350x magnification on the X and Y axes

  • Core-Alignment PAS technology

  • Compact and lightweight construction

  • Suitable for fibers, cables, and SOC (splice-on connectors)

  • Integrated fiber holder

  • Operating Modes: Automatic, Semi-Automatic, and Manual

  • Resistant to shocks and drops

  • Power-Saving Mode

  • 4.3″ color LCD display

Available

1 in stock

Product Code: DVP-740D Categories: ,

Description

DVP-740D Fusion Splicer Fiber Fusion Splicing Machine FTTH

The DVP-740D is an automatic fiber optic fusion splicing machine (fusion splicer), suitable for fiber types such as SM, MM, DS, NZ-DS (G655), EDF and others. It ensures high-quality splicing even in difficult environmental conditions, making it ideal for demanding installations FTTH (Fiber to the Home).

To compare different technologies and models, see all available Fiber Optic Splicer and Fusion Splicer for FTTH and choose the right machine according to the requirements of your fiber optic installations.

The device supports core or cladding alignment, with automatic positioning of the cleaved fibers on the X and Y axes and secure splicing. The bare section of the fiber is protected with a heat-shrink protection sleeve which reduces losses and increases durability.

DVP-740D Technical Specifications

  • Model: DVP-740

  • Dimensions 122mm (Μ) × 122mm (Π) × 130mm (Υ)

  • Weight: 2.0 kg (with battery)

  • Fiber Types: SM (ITU-T G.652 & G.657), MM (G.651), DS (G.653), NZDS (G.655)

  • Fiber Diameter / Cleave Length: 0.1251mm / 816mm

  • Coating Diameter: 80~150 μm

  • Splicing Modes: Automatic / Manual

  • Heating: Programmable

  • Typical Splicing Loss:

    • SM: 0.02dB

    • MM: 0.01dB

    • DS: 0.04dB

    • NZDS: 0.04dB

    • G.657: 0.02dB

  • Return Loss: ≥60dB

  • Splicing Time: 7 seconds

  • Heating Time: Typically 13 seconds

  • Result Storage: 8,000 records

  • Tensile Strength Test: 2.0N

  • Display: 4.3″ high-resolution color display

  • Fiber Magnification: X, Y, XY, X/Y: up to 350x

  • Power Supply: Internal lithium battery / DC power adapter

  • Battery Operation: Up to 250 splicing + heating cycles

  • Operation: Buttons

  • Calibration: ARC Test

  • Operating Conditions:

    • Altitude: 0–5000m

    • Humidity: 0–95%

    • Temperature: -10 to +50°C

    • Maximum Wind Speed: 15 m/s

  • Storage Conditions: -40 to +80°C, 0–95% humidity

Packaging & Delivery

  • Sales Unit: Piece

  • Package Dimensions: 43 x 22 x 34 cm

  • Gross Weight: 9.0 kg
