COMWAY CS-06 Fiber Optic Thermal Stripper

223,20€ incl. VAT

  • Ergonomic Design – For comfortable and stable use during extended work.

  • Low Pulling Force – Minimizes stress on the fiber during stripping.

  • Up to 400 stripping cycles – High performance and long service life.

  • Heating time of just 4 seconds With LED Indicator for precise operation.

  • Suitable for ribbon fibers with 200–400 μm coating – Supports multiple cable types.

Available

2 in stock

Product Code: CMW-CS-06 Categories: ,

Description

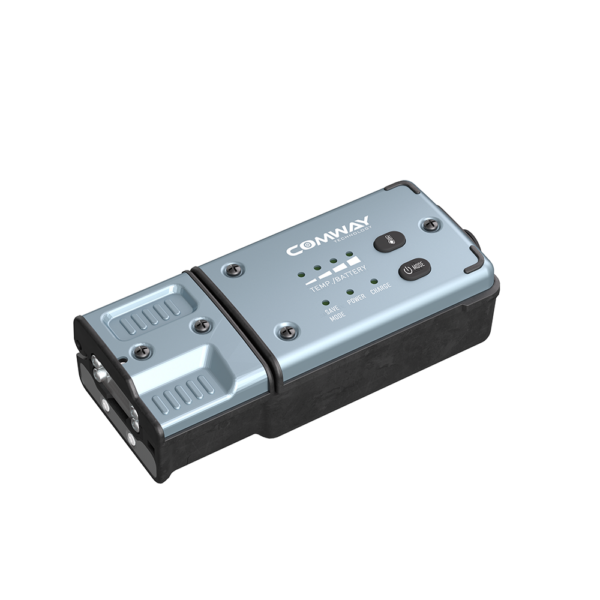

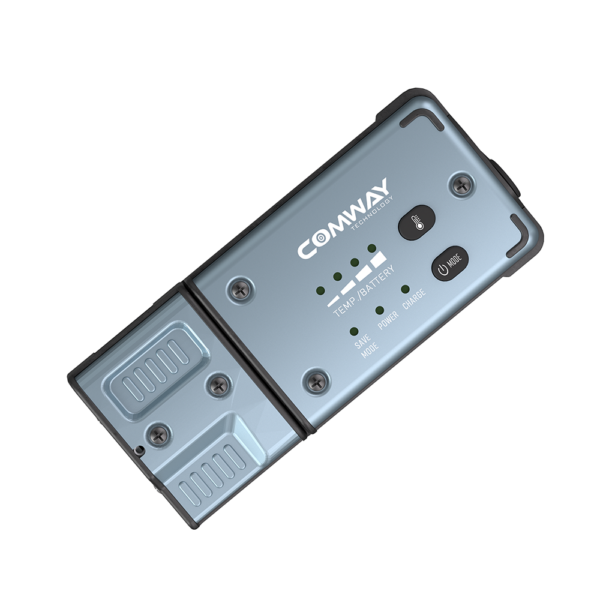

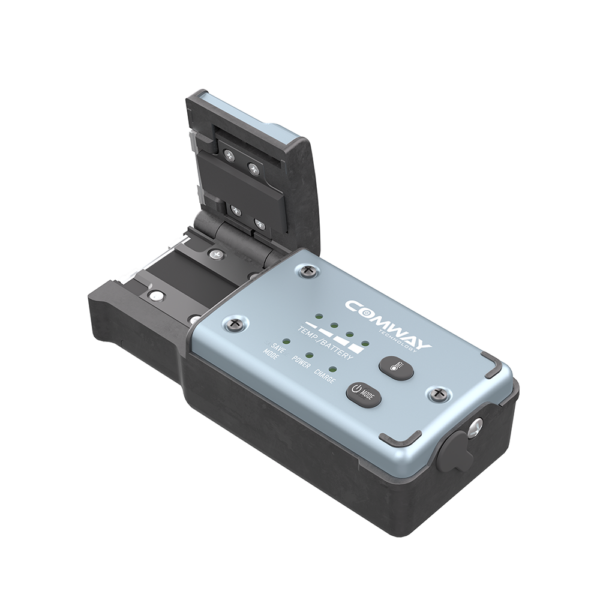

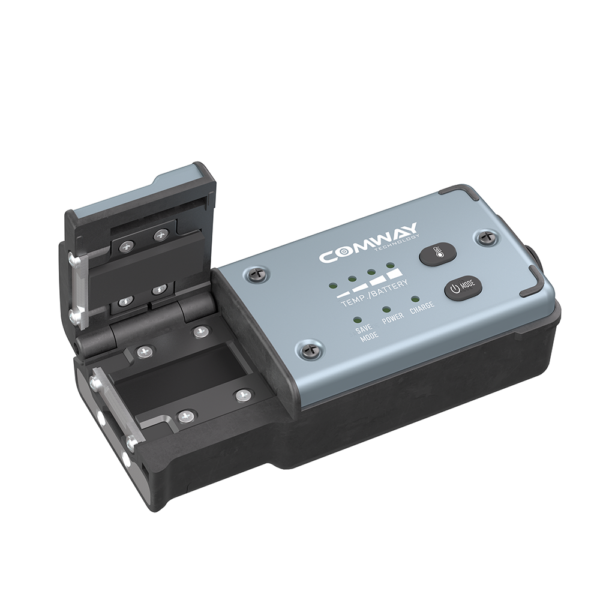

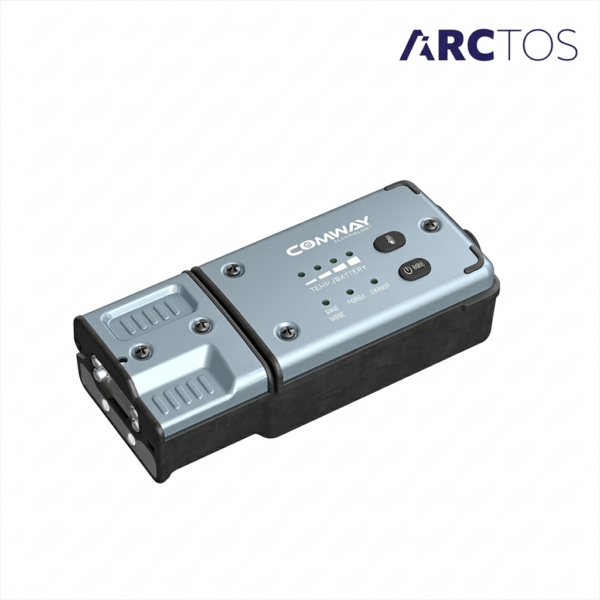

COMWAY CS-06 Fiber Optic Thermal Stripper

The COMWAY CS-06 Thermal Stripper is a modern, portable thermal stripper, specially designed for non-destructive stripping of coatings from single optical fibers and ribbon fiber cables with up to 12 fibersIt is an essential tool for ribbon fiber optic splicing work.

✅Suitable for Various Fiber Optic Diameters (e.g. 250 μm, 900 μm)

  • Compatible with single fibers, bundles, pigtails, ribbon fibers, and “invisible” fibers

  • Coating Diameter: 200-400μm

  • Cladding Diameter: 125μm

  • Stripping Length: Έως 30mm

⚙️ Features & Benefits

  • Lightweight & Portable Design – Ideal for field or laboratory use

  • Ergonomic Handle – for comfortable use with minimal pulling force

  • Widened Blade – Allows multiple fibers to be stripped simultaneously, increasing productivity

  • Automatic Countdown & Shut-Off for energy saving

  • Built-In Rechargeable Lithium Battery – USB-C charging (compatible with mobile phone chargers)

🔥 Thermal Stripping Operation

The COMWAY CS-06 thermal fiber optic stripper uses controlled heating to soften the outer coating of the fiber, allowing easy and safe stripping without damaging the cladding of fiber.

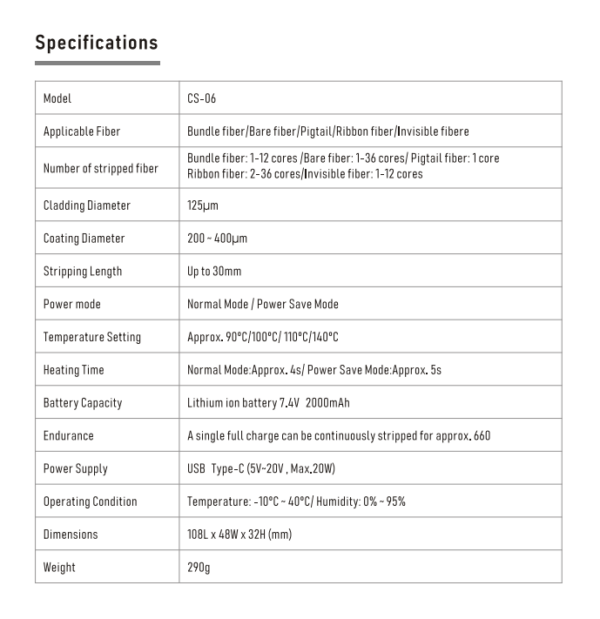

📊 Technical Specifications

Property Value
Fiber Types Bundle / Single / Pigtail / Ribbon / Invisible Fiber
Number of Fibers Bundle: 1-12
Temperature Settings 90℃ / 100℃ / 110℃ / 140℃
Heating Time Normal Mode: ~4 s
Battery 7.4 V / 2000 mAh Lithium-Ion
Battery life Up to 660 fibers on a full charge
Charging Type USB Type-C (5 V–20 V, up to 20 W)
Dimensions 108 x 48 x 32 mm
Weight 290g
Operating Conditions Temperature: -10°C to +40°C / Humidity: 0–95%

🔍 Ideal For:

  • Fiber optic technicians

  • Splicing work with ribbon fiber cables

  • FTTx network installation projects

  • Professional use in laboratories or in the field

Looking for a reliable thermal stripper for fiber optics? The COMWAY CS-06 is an excellent choice for performance, precision, and ease of use!

📞 Contact us for wholesale pricing or availability.
